Ultra thin resin Cutting Disc for C-CORE Sensor Gap Core
AUTOFOR ultra thin resin cutting disc is good at cutting toroidal
core,c-core,gap core,split core for CT/PT,,instrument
transformer,sensor.converter,CRGO,amorphous,nano core.

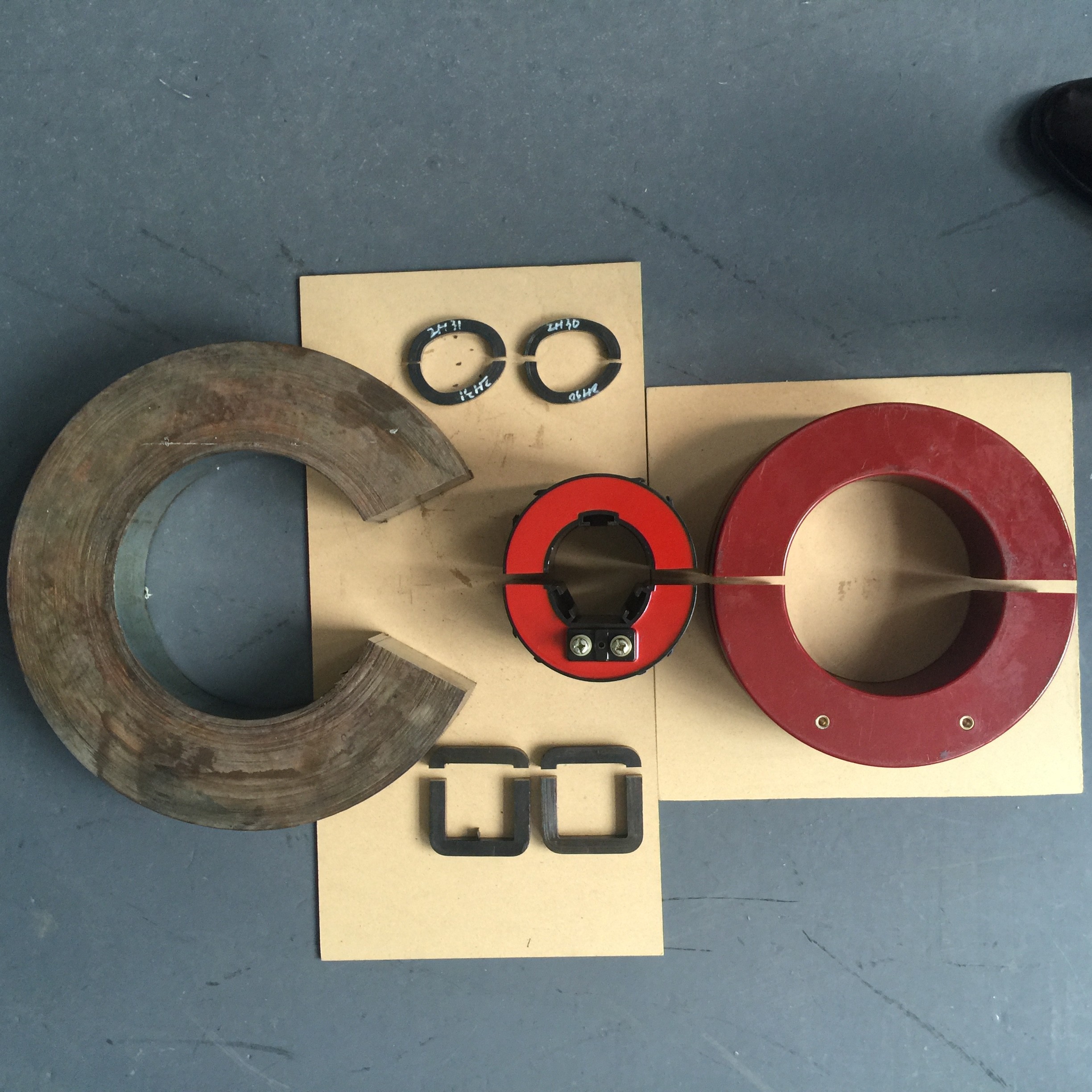

Cutting effects:
AUTOFOR specially develops more than 30 series of precise cut-off
Wheel for magnetic cores cutting and gapping,like amorphous,
nanocrystalline, ultrafine crystalline,silicon steel, permalloy,
beryllium film, transformer, ferrite, ferrosilicon, ferronickel,
ferrosilicon-aluminium, which are suitable for different customers
and products with different personalized needs. If AUTOFOR cutting
wheel matching with AUTOFOR cutting machine,you can achieve cutting port "mirror "effect , even if you don't use secondary grinding, then greatly save labor costs.
Advantages:
1. No burr after cutting ,cutting resistance 20-80% better than
Euro-Japanese-American Brand Cutting wheel.
2. No smoke during cutting
3. Cutting port quality very smooth,no burn,no loose
4. Germany technique, original manufacturer,so quality is high and
the cost is low.The customers who start to work with us then
cooparete for long time.
5. The accuracy is less than ±0.05mm
Magnetic Core Cut-off Wheel specifications (mm)
| Model | OD | THK | ID | Line speed(m/s) |
| CX150 | 150 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX180 | 180 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX230 | 230 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX255 | 255 | ≥0.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX355 | 355 | ≥1.2 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX405 | 405 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX455 | 455 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
| CX510 | 510 | ≥2.0 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50
|
Environmental Protection
AUTOFOR is committed to providing high quality and environmental
friendly products for customers. We always put the ISO14001
environmental system into practice. All products of its brands have
passed SGS environmental certification. The products are harmless
to the environment and human body, and they can achieve zero
pollution and zero emission. Let us protect the environment and
build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy,
electronics, education and other fields. In the industry of
precision cutting technology, it has been in the forefront of
domestic counterparts.
