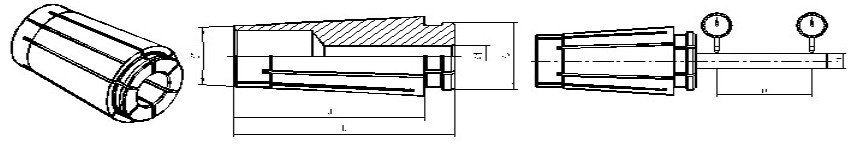

SK Clamp collet
Material: SUJ2 · Hardness: HRC46° · Deflection accuracy: 5μ or less
(extends to 4D length) · Clampable drill bit, wire tap, milling
cutter, reamer · The tolerance of the tool shank is limited to h7
Aperture 3mm, elastic contraction 0.25mm, aperture 3mm or more,
elastic contraction 0.5mm
Material:
SUJ2
Hardness:
HRC46°
yaw accuracy:
5μ or less (extends to 4D length)
Usage:
Can hold drill bit, wire tap, milling cutter, reamer

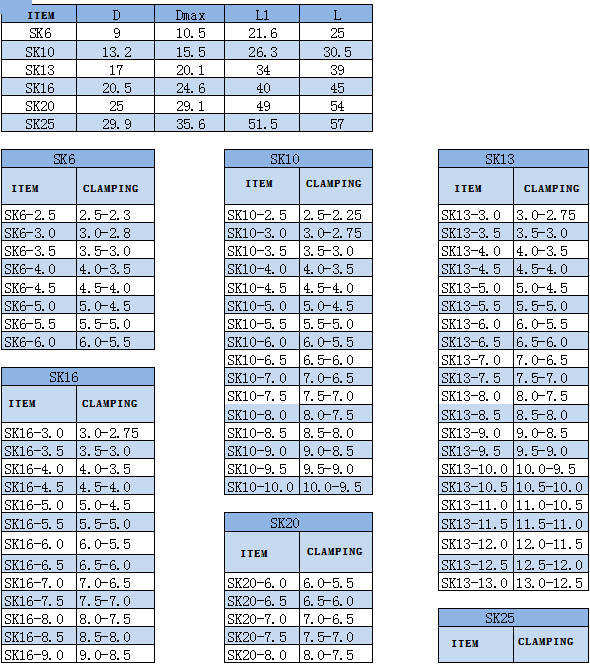

Clamp range:
The tool holder diameter tolerance is limited to h7
Features:
1.The hole diameter is less than 3mm and the elastic shrinkage is
0.25mm
2.The hole diameter is more than 3mm and the elastic shrinkage is
0.5mm
In December 2018, AUTOFOR Chairman PAUL YANG successfully acquired
a domestic drilling chuck (clamp) manufacturer and opened the
strong layout of AUTOFOR “high-precision industry”.
Since 2019, the high-precision drill chucks (collect) of the “Jie
Paishi GPDC” brand under the AUTOFOR have begun to go global...
Precision Cut-off Wheel Series
AUTOFOR, as a global precision cutting enterprise, has obtained
more than 10 invention patents, 600 formulations and 30,000
specifications. Furthermore,resin grinding wheel can achieve 0.125
mm,which touched the world's thinnest record, and the entire line
of products through SGS environmental friendly certification.We can
also customize the formula according to the personal needs of
customers.
