CNC ss pipe cutting machine for stainless steel USB interface
AUTOFOR carefully developed for the market, USB TYPE-C special
high-precision automatic cutting machine, with computer program
control, user-friendly operation interface, high cutting precision,
precise micro-adjustment, good incision quality, automatic feeding,
greatly saving labor Cost and double the efficiency of work.
AUTOFOR began researching USB TYPE-C high-precision fully automatic
cutting equipment from September 2015, mainly to solve the problem
of cutting precision and cutting efficiency for the supplier of
Apple Iphone.The Apple Iphone supplier requires that each USB has a
cutting accuracy of less than 5 filaments. It cannot be seen with
burrs or draping with the naked eye. Another high-end requirement
for the cutting machine is the verticality requirement of the
product. Within 1 wire. This requirement is difficult to meet for
ordinary equipment. The work done by Alofo AUTOFOR is not only to
meet the requirements, but to strive for excellence and
continuously improve the comprehensive competitiveness of the
market.
Features:
1. The overall structure is reasonable and compact, and the good
design layout makes the operation of the personnel more simple and
quick.
2. Imported precision guide rails and imported bearings are used
for the important parts of the machine, which guarantees the
long-term operation of the equipment.
3. equipped with Alofo AUTOFOR special cutting wheel, can cut
stainless steel, copper, all kinds of alloy steel and other
materials.
4. equipped with USB special clamping tool, can be cut together
with multiple roots, greatly improving the cutting efficiency.
5. the material port after precision cutting, can achieve very high
surface finish and no burrs and no burn black mouth.
6. ATF-20 good human-machine interface, each function at a glance,
easy to operate.
7. using PLC integrated controller, the line is simple, easy to
maintain.
8. Equipped with Altov AUTOFOR bar special cutting fluid to ensure
that the workpiece and cutting piece are not burned, large water
cooling and water injection, and add "LUBRITA" special coolant
developed by AUTOFOR to ensure that the cutting port is not burned,
burr-free, no batch front .

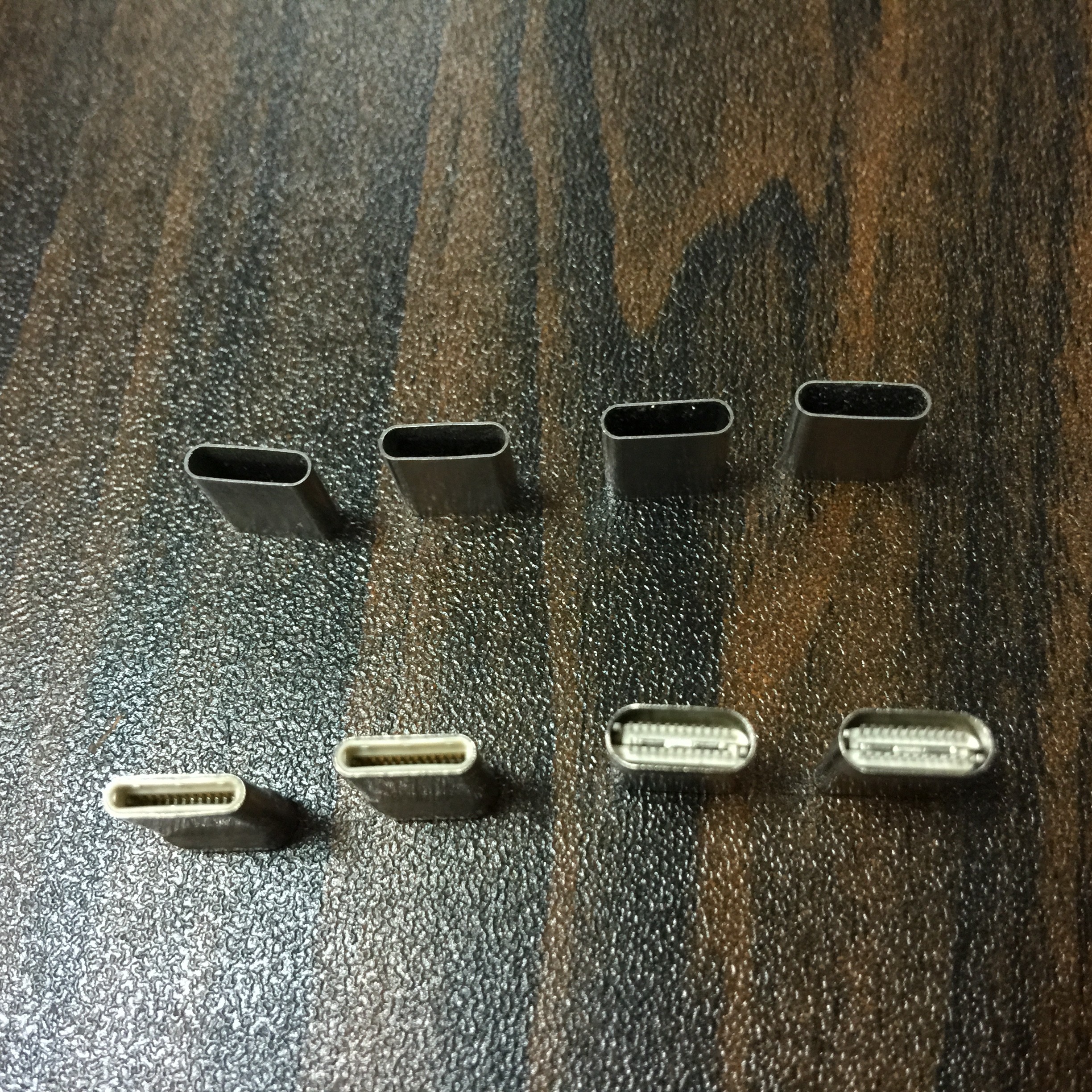

Cutting effects:
| Model Item | High-end Version | Standard Version |
| USB001 | AF017 | USB001 | AF017 |
| Shape size (length * width * height)Without foot cup(mm) | 1155*940*1680 | 720*1050*920 | 1155*940*1680 | 845*1150*1150 |
| Main machine weight(KG) | 750 | 380 | 550 | 380 |
| Machine power(KW) | About 12.8 | About 5.5 | About 2.8 | About 1.9 |
| Main drive power(KW) | 11 | 3 | 1.5 | 0.55 |
| Maximum grinding wheel(mm) | 205 | 230 | 205 | 230 |
| Center hole(mm) | 32 | 32 | 25.4 | 25.4 |
| Rotating speed(r/min) | 0-4000 | 3500 | 0-4000 | 3500 |
| Maximum cutting capacity(mm) | ∮145 | ∮90 | ∮58 | ∮45 |
| Maximum cutting range(mm) | 140 | 90 | 150 | 130 |
| cutting speed | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Servo feeding | Stepping feeding | Servo feeding | Servo feeding |
| Push and cut mode | Z-cut | Z-cutg | Z-cut | Z-cut |
3.Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end
market. Through UL, CE certification in Europe and America and CCC
certification in China, it is in the leading position in the
industry in terms of automation intelligence and technological
innovation. More than 60 patents have been obtained for related
cutting machines and fixtures in the exclusive industry, and
customized design can also be carried out according to the
different technical needs of different customers to achieve the
goal of beautiful usage scenarios, and we never stop the pace to
inventing and innovating
68 Patents of AUTOFOR:
1. Patent of the working platform of the patented cutting machine
for the cooling cycle structure of the cutting machine
2. Patent for Cutting Multifunctional Cutting Machine
3. Patent for thin-walled pipe cutting machine
4. Patent for Push-Cut cutter
5. Patent for cutting fluid purification, energy saving and
environmental friendly system
6. Patent for Fast Clamping Fixture
7. Patents for Multi-compartment Separated Cutting Equipment
8. Patent for Intelligent Wireless Control Machining Equipment
9. Patent for built-in cutting fluid tank
10. Patent for Precision Grinding Wheel Cutting Machine for Cutting
Fluid FiltrationPurification and Cooling
11. Patent for multi-performance and high environmental protection
cutting fluid
12. Patent for Vertical Cutting Machine Patents for Cutting
Machines with Adjustable Grinding Wheel Sets
14. Patents for multi-purpose fixture with multi-cutter at the same
time Patent for Cutting Device of Workpiece Fixture
16. Patents for Three-Axis Work Platform
17. Patent for Cutting Fluid Collection and Circulation Processing
System Patents for two sets of mobile cutting equipment
19. Patents for Intelligent Control Devices of Pump Motor Patent
for Cutting Spring Device
21. Patent for High-precision meshless ultra-thin resin and its
preparation method
22. Patent for resins with high sharpness, durability and cutting
ports of high quality and its preparation method.
23. Patent for Precision Cutting Machine
24. Patent for automatic and efficient fixture for half-cutting of
circular workpiece
25. Patent for High Efficiency Fixture with Arbitrary Width Gap for
Ring Workpiece
26. Patent for automatic and efficient cutting fixture for cutting
circular workpiece at any angle
27. ……
