Precision Cutting Wheel for piston ring cutting high efficiency

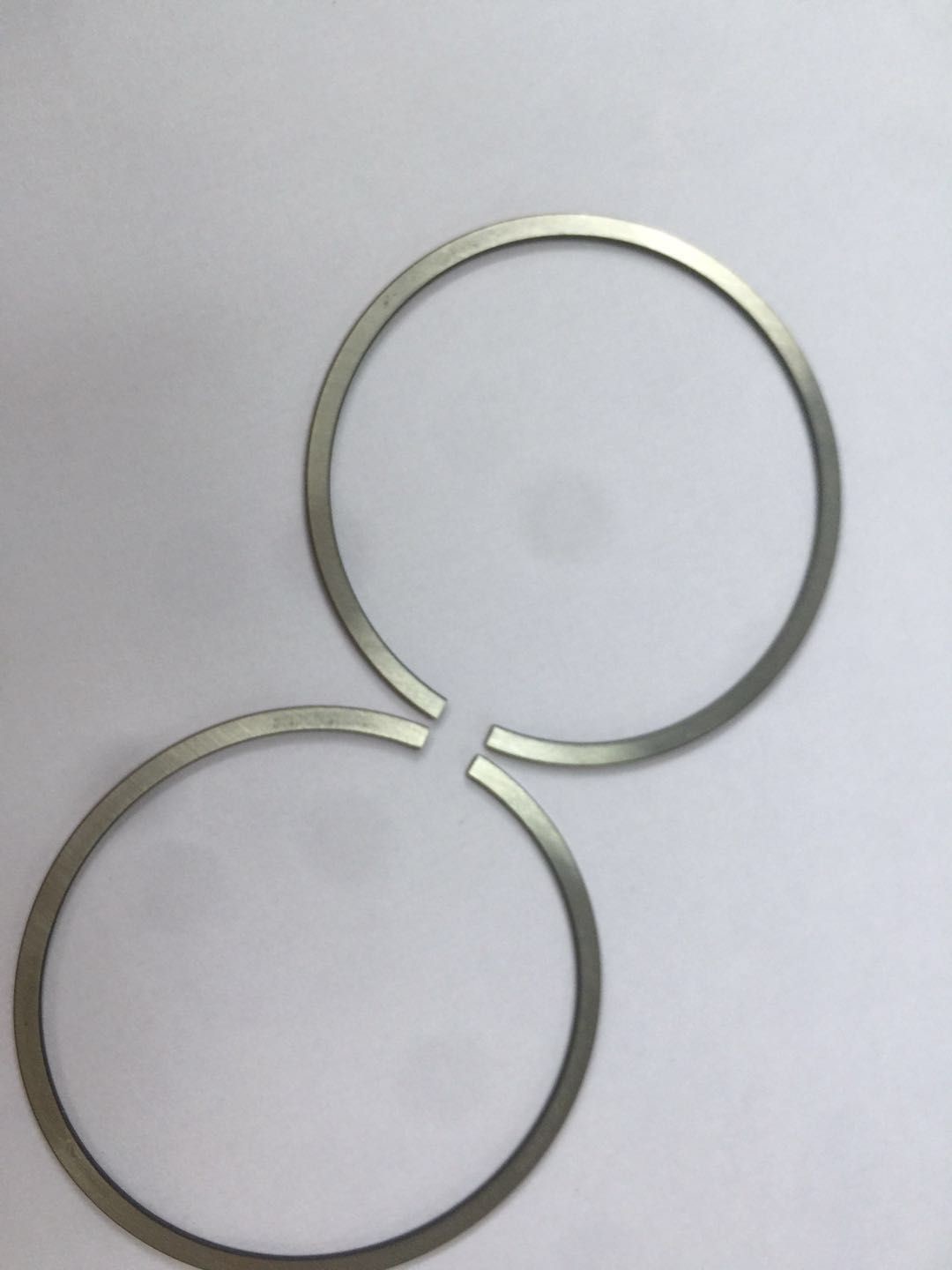

AUTOFOR precision cutting wheels to cut piston ring,like Automobile piston ring, motorcycle piston ring, cylinder piston
ring,Air compressor piston ring,supercharger seal ring special
gasoline and diesel engine piston ring special precision cutting
machine,smooth,no burr,high efficiency.
Advantages :
1. With good cut-resistance, 1 pcs of AUTOFOR cuttting wheels can
take advantage of 3 pieces of the same top brand products.
2. The thickness and precision of the cutting piece are very high,
which can be used for precision milling, engraving, machining and
cutting, and the product precision error is small.
3. The quality of the cutting port is free of burrs, no burns,
smooth and bright, and does not need to be processed through two
processes.
4. The cutting piece has good performance and will not burn the
workpiece;
5. Specifications can be customized.
| Specifications of slotting/slotting/milling precision Cut-off
Wheel(size:mm) | |
| Model | OD | THK RANGE | ID | Line speed(m/s) |
| KC22 | 22 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC35 | 35 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC38 | 38 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC41 | 40 | ≥0.1 | 1.8/3.2/4/6 | 50-80 |
| KC50 | 50 | ≥0.1 | 3.2/4/6/8 | 50-80 |
| KC76 | 76 | ≥0.125 | 4/6/8/10/12.7/16/22/25.4 | 50-80 |
| KC90 | 90 | ≥0.2 | 6/8/10/12.7/16/22/25.4 | 50-80 |
| KC110 | 110 | ≥0.3 | 6/8/10/12.7/16/22/25.4/31.75/32 | 50-80 |
| KC130 | 130 | ≥0.3 | 6/8/10/12.7/16/22/25.4/31.75/32 | 50-80 |
Company Profile
AUTOFOR Company,the craftsman Enterprise leading global exquisite
"Precision Cutting Technology" !
AUTOFOR Company, the promoter and the navigator of "Precision Cutting Technology"!
AUTOFOR Company, the industry standard setter and the developer of "Precision
Cutting Equipment"!
AUTOFOR Company, the successor and the specialist of "Precision Resin Cutting
wheel"!
AUTOFOR Company,the customizer and developer of “ Special Cutting Fluid”!
AUTOFOR Company,the designer and user of “Special Fixture”!
AUTOFOR Company,pledges to specialize in the Precision Cutting Technology for 100
years!
Environmental Protection
AUTOFOR is committed to providing high quality and environmental
friendly products for customers. We always put the ISO14001
environmental system into practice. All products of its brands have
passed SGS environmental certification. The products are harmless
to the environment and human body, and they can achieve zero
pollution and zero emission. Let us protect the environment and
build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy,
electronics, education and other fields. In the industry of
precision cutting technology, it has been in the forefront of
domestic counterparts.
