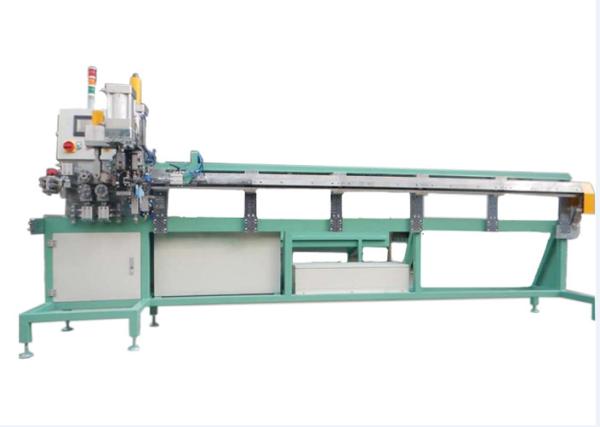

High Speed Steel Wire Cut To Length Machine,Cluth wire cutting
machine
This machine is mainly used to cut the length of the steel wire
rope of φ1.0～φ3mm (or ~φ4.7mm soft wire).
The main parameters
1. The diameter of the lower wire rope: φ1.5～φ3 mm (or ~φ4.7mm soft
wire)
2, the length of the lower line: 150 mm ~ 1800 / 2400 / 3000 / 3600
/ 4200 / 4800/5400 / 6000mm adjustable
3. The length accuracy of the lower thread is: 1000±1 mm The
maximum error of other lengths is ±2 mm
4, the fastest wire feeding speed: 1200 mm / s
5, the maximum tangent + transplant + flower + flower head
detection time: ~ 3 seconds / time
6, the line and transplant, flowering and flower head detection are
synchronized, so the speed is almost the same as the line machine.
7, flower head size and shape: according to the information
provided by the user
8, wire motor: MHMD082G1U + controller (Panasonic servo motor)
9, the maximum tangential force: 2600 kg (125 cylinders: 4000 kg)
10, the maximum pressure force: 2600 kg
11, the maximum flowering power: 1300 kg
using electric:
1, voltage: single phase 220V
2. Frequency: 50±5 Hz
Using compressed air
1. Air pressure: ≥0.5 MPa
2, the maximum gas consumption: ≤ 4 L / min
13, the total installed capacity: 150W
14. Space occupied after installation: 3400 (2400 models) × 900 ×
1650 mm
12, equipment weight: about 1500 kg (2400 models)
13 World Initiatives
1. The first High Efficiency Fixture
2. The first Indicating and Alarm System
3. The first Cutting Fluid Purification System
4. The first cutting fluid refrigeration system
5. The first platform wireless intelligent remote control system
6. The first "Drive and Workspace" Independence
7. The first "Silly Elephant" Spindle Seat
8. The first “Hummer” Spindle
9. The first Fixed Spindle
10. The first water tank built-in
11. The first Precision Cutting Machine + Cutting Fluid
Refrigeration System + Cutting Fluid Purification System
68 Patents of AUTOFOR:
1. Patent of the working platform of the patented cutting machine
for the cooling cycle structure of the cutting machine
2. Patent for Cutting Multifunctional Cutting Machine
3. Patent for thin-walled pipe cutting machine
4. Patent for Push-Cut cutter
5. Patent for cutting fluid purification, energy saving and
environmental friendly system
6. Patent for Fast Clamping Fixture
7. Patents for Multi-compartment Separated Cutting Equipment
8. Patent for Intelligent Wireless Control Machining Equipment
9. Patent for built-in cutting fluid tank
10. Patent for Precision Grinding Wheel Cutting Machine for Cutting
Fluid FiltrationPurification and Cooling
11. Patent for multi-performance and high environmental protection
cutting fluid
12. Patent for Vertical Cutting Machine Patents for Cutting
Machines with Adjustable Grinding Wheel Sets
14. Patents for multi-purpose fixture with multi-cutter at the same
time Patent for Cutting Device of Workpiece Fixture
16. Patents for Three-Axis Work Platform
17. Patent for Cutting Fluid Collection and Circulation Processing
System Patents for two sets of mobile cutting equipment
19. Patents for Intelligent Control Devices of Pump Motor Patent
for Cutting Spring Device
21. Patent for High-precision meshless ultra-thin resin and its
preparation method
22. Patent for resins with high sharpness, durability and cutting
ports of high quality and its preparation method.
23. Patent for Precision Cutting Machine
24. Patent for automatic and efficient fixture for half-cutting of
circular workpiece
25. Patent for High Efficiency Fixture with Arbitrary Width Gap for
Ring Workpiece
26. Patent for automatic and efficient cutting fixture for cutting
circular workpiece at any angle
Cutting effects:
