ultramicrocrystal cutting machine eco - friendly smooth cutting
port quality
| AUTOFOR's Absolute Advantage |
| ITEM | AUTOFOR ADVANTAGES | AUTOFOR(High version) | Domestic small factory |
| 1 | high cutting efficiency | Hummer spindle, spindle speed reaches 4500 without jitter | spindle will move, starting to shake over 3000 rpm |
| High speed, many times of cutting frequency, and multi-knife patent
selection | Low speed, low frequency of cutting |
| 2 | high accuracy | The accuracy of Japan's aviation-grade bearings and spindles is
within 0.02mm. | Did not do these processes; |
| Drive platform and work platform, through the "gantry milling" and
"de-stressing" process (AUTOFOR exclusive) | Did not do these processes; |
| 3 | equipment quality/working life/function/steady....more strong | Weight:1600kg | Weight:400-800kg |
| The steel plate of the drive platform is up to 60mm thick and the
cutting platform is up to 40mm thick. | Large platform is generally 10mm steel plate |
| International first-line brands, top-level configurations such as
Siemens, Honeywell, Schneider, Shanghai Silver, and Raytheon | Domestic small brand |
| Extra large spindle with Japanese aviation class bearings | small spindle |
| Drive platform and working platform, through the "gantry milling"
and "de-stressing" process (Altov exclusive), the accuracy is
constant all the year, the life of the use is more than 10 years is
no problem | Without doing this process, the accuracy of the cut product is
gradually reduced after 1 year, and the more it is cut, the more
difficult it is to use. |
| Separation of drive and cutting chambers, safety, long life of
equipment and accessories | The motor, main shaft and cutting are all in the cutting chamber,
the risk of leakage, the life of equipment and accessories is
extremely short |
| 4 | high quality and good price | Drive platform 60mm steel plate gantry milling, integrated sheet
metal cost is more than 4 times higher than its peers | 5-15mm steel plate is not used, no gantry milling and stress relief
treatment |
| Siemens motor in Germany; | Ordinary domestic motor |
| Japan Airlines class bearing, φ110mm extra large spindle, the
accuracy is within 0.02mm, the cost is 1650USD , 5 times higher
than the same industry | Ordinary small spindle φ45-60mm |
| International first-line brands, Siemens, Schneider, Raytheon,
Honeywell, Taiwan's top silver and other top-level configurations,
cost 6-10 times higher than the industry | Domestic small brand |
| Buddly spindle seat, two groups weighing up to 120kg | no |
| Multi-groove pulley, cost 100USD /PCS, cost 10 times higher than
the V-belt | Ordinary triangular leather wheel |
| Multi-ditch belt, cost 50USD / PCS, the cost is 6 times higher than
the ordinary triangle belt | Ordinary triangle belt |
| Gantry milling, "de-stressing", "painting", cost in kilograms | there is no cost for these artwork |
| 5 | leading advantages | It has 38 patents, 13 leading Germany and Japan, and 39 domestic
counterparts. (Can refer to the patent certificate) | no |
Application:
amorphous, nanocrystalline, ultrafine crystal, transformer, silicon
steel, ferrosilicon, aluminium-iron-silicon, iron-nickel, iron
powder core, beryllium film, ferrite, cemented carbide, pipes,
bars, ceramics, ferrite, non-ferrous metal materials, tungsten
rods, tungsten rods, stainless steel, titanium, glass-epoxy
silicon, glass, fiberglass, quartz, molybdenum, tantalum, various
high-speed steels, tungsten steel, chromium-plated composite.
Precision cutting of gold, titanium alloy, high-speed steel, rail,
slider, guide rail, special heat-treated stainless steel, carbon
steel, spring steel, die steel, tool steel, bearing steel, golf
club, nickel-cadmium alloy, nickel-titanium-cobalt rock, cast iron,
cermet, artificial bone, superhard rubber wood material,
cobalt-nickel material, carbon fiber, polyamide fiber, composite
material and other materials
| Model item | AF012 | AF014 | AF015 | AF018 | AF019 | ATF171101 | CX20 |
| LWH(MM) | 1900*1450*2150 | 1350*970*2105 | 1800*1350*2150 | 1250*1300*2100 | 1300*1200*1600 | 1500*960*2200 | 1050*900*1250 |
| Main machine weight(KG) | 1950 | 1400 | 1600 | 1200 | 800 | 1500 | 300 |
| Machine Power(KW) | 13 | 5.5 | 10 | 6.5 | 5.5 | About 12.8 | About 5.5 |
| Main Drive Power(KW) | 11 | 4 | 7.5 | 5.5 | 4 | 11 | 3 |
| Maximum grinding wheel(MM) | 455 | 305 | 405 | 355 | 355 | 405 | 230 |
| Centre Hole(MM) | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Rotating speed(R/MIN) | 0-4700 | 0-4200 | 0-4700 | 0-4700 | 0-4000 | 0-4000 | 0-4000 |
| X-axis range(MM) | 460 | / | 410 | 400 | 250 | 0 | 190 |
| Y-axis range(MM) | 40 | 20 | 40 | 30 | 30 | 20 | / |
| Maximum cutting capacity(MM) | ∮140 | ∮90 | ∮140 | ∮115 | ∮120 | ∮145 | ∮90 |
| Maximum cutting range (MM) | 120 | 100 | 120 | 120 | 120 | 140 | 90 |
| Feed rate mm/min | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Stepping feeding | Stepping feeding | Stepping feeding | Stepping feeding | Stepping feeding | Servo feeding | Stepping feeding |
| Push and cut mode | Y-cut/Y-cut
| Z-cut/Y-cut
| Z-cut/Y-cut
| Z-cut/Y-cut
| Z-cut/Y-cut
| Y-cut
| Y-cut
|
| Cutting mode | horizontal cutting | Vertical cutting | horizontal cutting | horizontal cutting | horizontal cutting | horizontal cutting | horizontal cutting |
| Water Tank capacity(L) | About 135L | About 65L | About 110L | About 100L | About 70L | About 170L | About 80L |
3. Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end
market. Through UL, CE certification in Europe and America and CCC
certification in China, it is in the leading position in the
industry in terms of automation intelligence and technological
innovation. More than 60 patents have been obtained for related
cutting machines and fixtures in the exclusive industry, and
customized design can also be carried out according to the
different technical needs of different customers to achieve the
goal of beautiful usage scenarios, and we never stop the pace to
inventing and innovating
※ Fifteen Advantages of Craftsmanship
- Thick material, whole machine + purification system + refrigeration
system 1800KG heavy frame
- The bottom board of water tank has thickness 10mm.The large panel
has thickness 20mm. The driving flatbed has thickness 40mm.And the
cutting flatbed has thickness 40mm.
- 180L Super Large Built-in Water Tank with Visual Level Meter can
enhance Equipment Stability
- "Stress Release" Processing of Frame Integral (Cost by Weight)
- Planar "gantry milling" processing of frame installation (cost by
weight)
- Environmental Friendly Paint Processing of Frame Peripheral Plate
(Cost by Weight)
- 20m platform with wireless intelligent remote control which do not
interfere with each other
- Platform free lifting, expansion and multi-specification core
cutting
- Platform Universal T-slot/core Platform, Suitable for any fixture
installation
- Efficient Fixture for "One-second Fixture"
- 110mm Extra Large Precision Spindle (Customized)+Hummer Type
Spindle Seat
- Separate working chamber, which can reduce noise and prolong
service life of components
- Exclusive possession of intelligent indicator alarm system (cutting
complete alarm + fault alarm)
- Siemens, Omron, Schneider and other European and American brands
are used
- for all accessories.
- Cutting fluids can be filtered at micron level
※13 World Initiatives
- The first High Efficiency Fixture
- The first Indicating and Alarm System
- The first Cutting Fluid Purification System
- The first cutting fluid refrigeration system
- The first platform wireless intelligent remote control system
- The first "Drive and Workspace" Independence
- The first "Silly Elephant" Spindle Seat
- The first “Hummer” Spindle
- The first Fixed Spindle
- The first water tank built-in
- The first Precision Cutting Machine + Cutting Fluid Refrigeration
System + Cutting Fluid Purification System
- The first a Universal Development Platform
- The first Hummer Drive Mechanism
※62Patents of AUTOFOR:
① Patent of the working platform of the patented cutting machine
for the cooling cycle structure of the cutting machine
② Patent for Cutting Multifunctional Cutting Machine
③ Patent for thin-walled pipe cutting machine
④ Patent for Push-Cut cutter
⑤ Patent for cutting fluid purification, energy saving and
environmental friendly system
⑥ Patent for Fast Clamping Fixture
⑦ Patents for Multi-compartment Separated Cutting Equipment
⑧ Patent for Intelligent Wireless Control Machining Equipment
⑨ Patent for built-in cutting fluid tank
⑩ Patent for Precision Grinding Wheel Cutting Machine for Cutting
Fluid Filtration, Purification and Cooling
① Patent for multi-performance and high environmental protection
cutting fluid
② Patent for Vertical Cutting Machine
③ Patents for Cutting Machines with Adjustable Grinding Wheel Sets
④ Patents for multi-purpose fixture with multi-cutter at the same
time
⑤ Patent for Cutting Device of Workpiece Fixture
⑥ Patents for Three-Axis Work Platform
⑦ Patent for Cutting Fluid Collection and Circulation Processing
System
⑧ Patents for two sets of mobile cutting equipment
⑨ Patents for Intelligent Control Devices of Pump Motor
⑩ Patent for Cutting Spring Device
⑪ Patent for High-precision meshless ultra-thin resin and its
preparation method
⑫ Patent for resins with high sharpness, durability and cutting
ports of high quality and its preparation method.
⑬ Patent for Precision Cutting Machine
⑭ Patent for automatic and efficient fixture for half-cutting of
circular workpiece
⑮ Patent for High Efficiency Fixture with Arbitrary Width Gap for
Ring Workpiece
⑯ Patent for automatic and efficient cutting fixture for cutting
circular workpiece at any angle
⑰ ……
The following innovations of 22 items, leading the European and
American brands 13 items and leading
the match of 49 items.

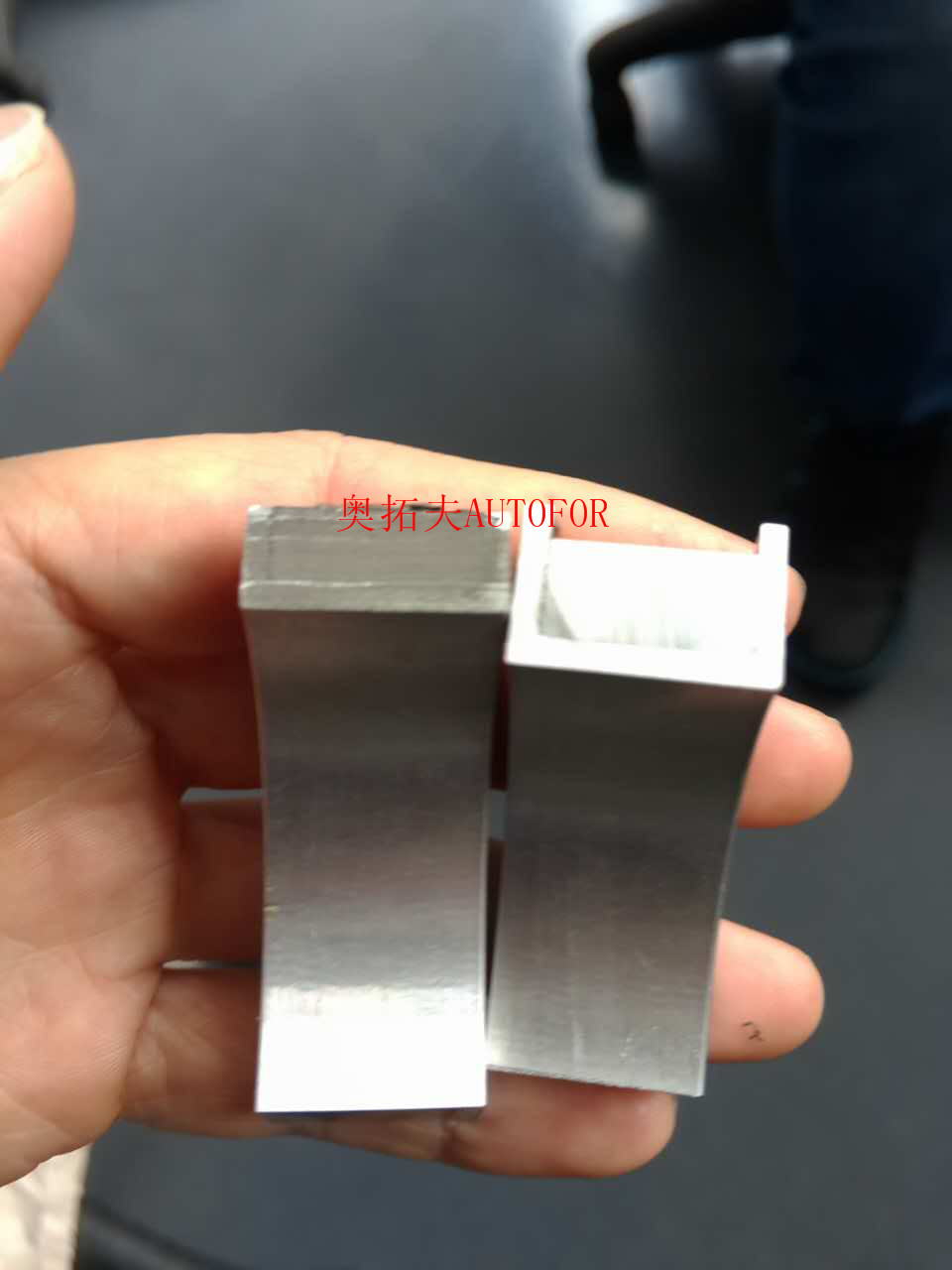

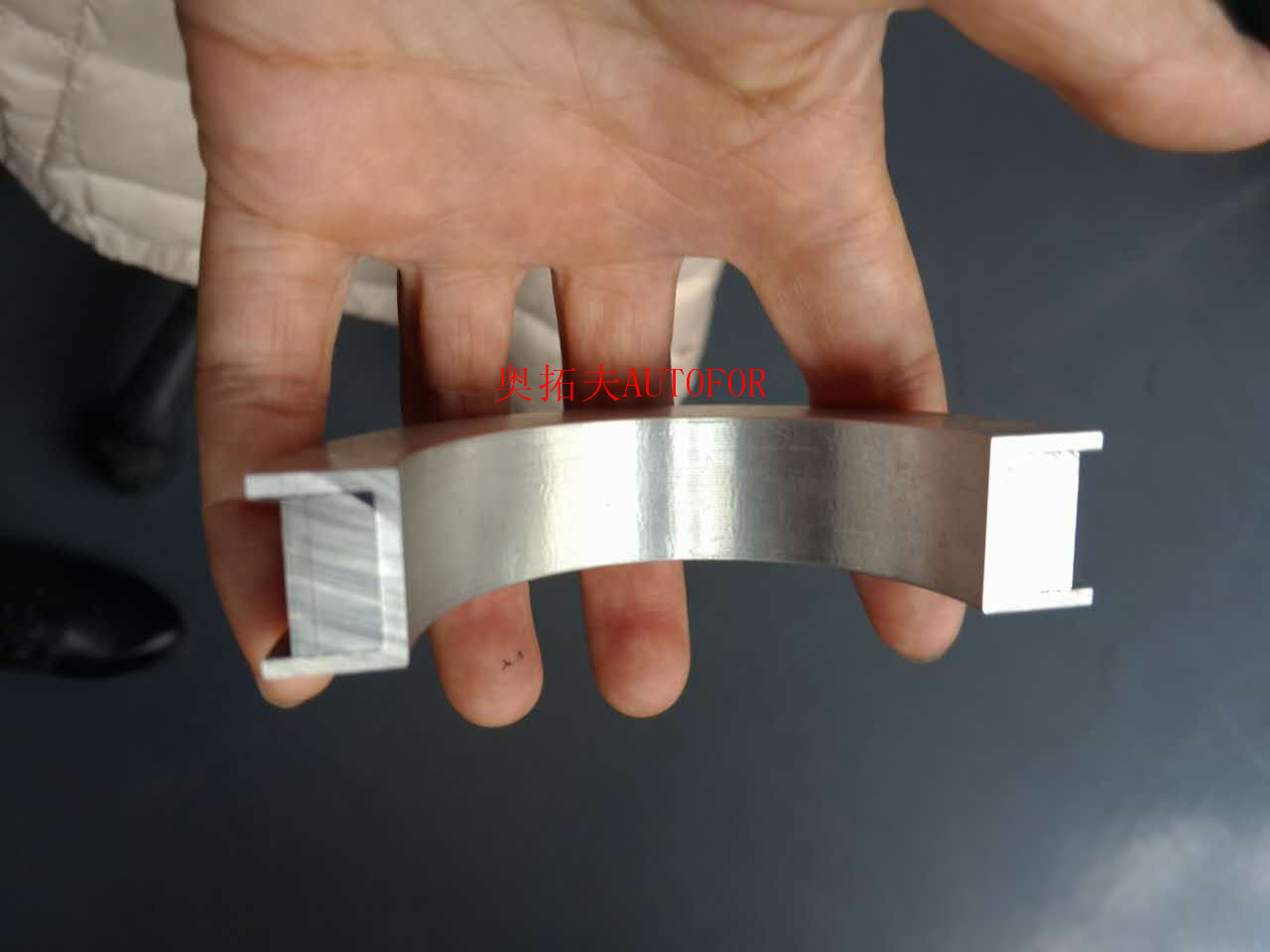

cutting effects:

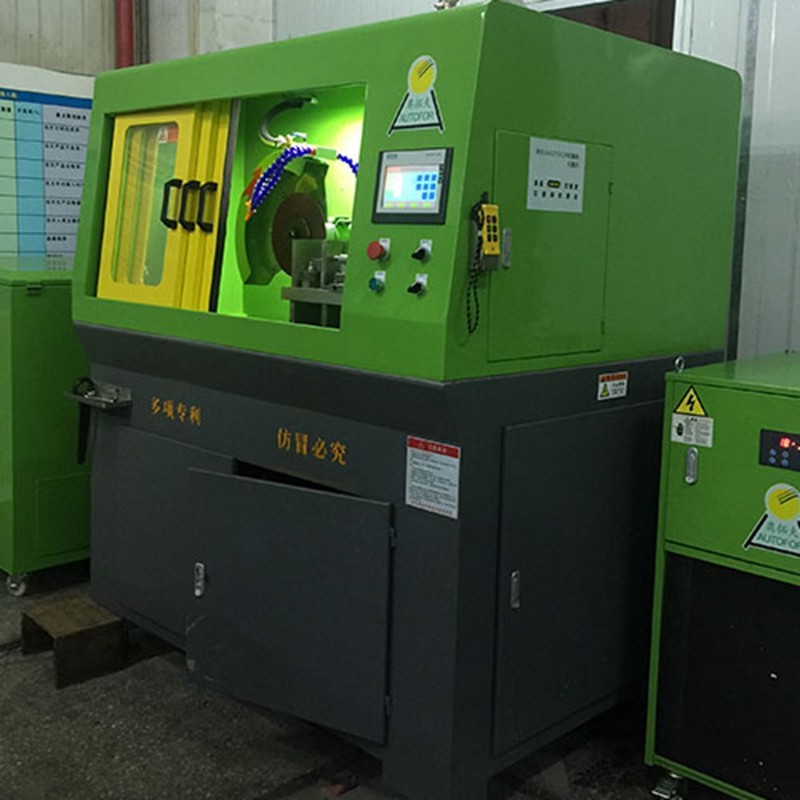

Cutting room:
