Marine Cable Cutting Wheel E-co Friendly Abrasive Resin Disc
AUTOFOR abrasive resin cutting wheel is experts in cutting Marine
cables/choke cable/saddle lock cable/speedometer cable/pull-push
cable/inner cable/outer cables/automative control cable/cluth
cable/control cable pipe hose tube for brake/bowden cable machinery
cable/gearbox control cable/hood latch release cable/gear selector
cable/speedometer cable/bonnet cable/gear shift cable/cable parking
brake/agricultural machinery.
Features:
- Germany technique and manufactured by ourselves, with high quality
and good price, the customers who start to work with us then
cooparete for long time.
- No burr after cutting , cutting resistance 20-80% better than
Euro-Japanese-American Brand Cutting wheel.
- No smoke during cutting
- Cutting tools of other specifications can be supplied as per
customer's request.
Application:
1. industries including aerospace, automobile, motorcycles, ships,
bicycles
2. agricultural machinery.
specifications (mm)
| Model | OD(mm) | THK(mm) | ID(mm) | Line speed (M/S) |
| LS180 | 180 | ≥0.3 | 12.7 25.4 31.75 32 40 50 | 50--80 |
| LS205 | 205 | ≥0.4 | 12.7 25.4 31.75 32 40 50 | 50--70 |
| LS230 | 230 | ≥0.4 | 12.7 25.4 31.75 32 40 50 | 50--70 |
| LS255 | 255 | ≥0.5 | 12.7 25.4 31.75 32 40 50 | 50--70 |

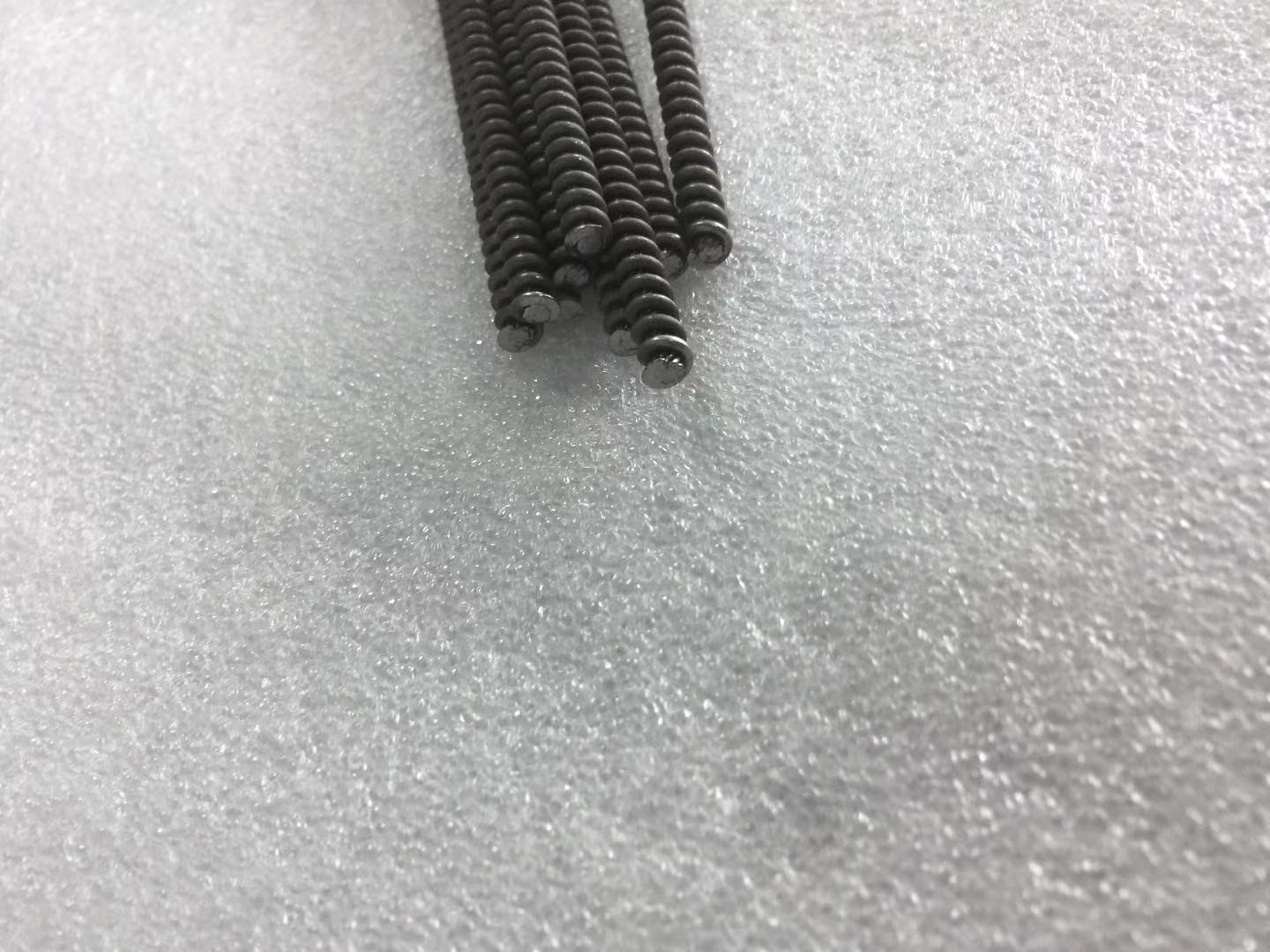

Cutting effects:
Precision Cut-off Wheel Series
AUTOFOR, as a global precision cutting enterprise, has obtained
more than 10 invention patents, 600 formulations and 30,000
specifications. Furthermore, resin grinding wheel can achieve 0.125
mm, which touched the world's thinnest record, and the entire line
of products through SGS environmental friendly certification. We
can also customize the formula according to the personal needs of
customers.
AUTOFOR aims to contribute its wisdom of the high-end and
high-precision industries to China and even the world. Our cutting
wheels used for these consumables include, among others:
----- Control cable / brake hose precision cutting
----- Amorphous / nano / silicon steel precision cutting
----- Tube/bars/profile precision cutting
----- " dental disc"polishing silicon resin discs
----- "Low hardness metal" precision cutting
----- "Medium hardness metal" precision cutting
----- "High hardness metal" precision cutting
----- "Slotting&gapping" precision cutting
