Automatic thermocouple Pipe Cutting Machine steel Tube Bar Cut
Equipment

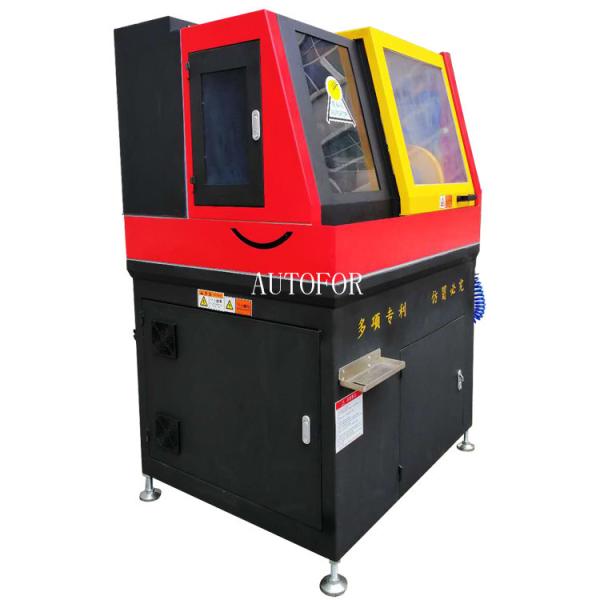

AUTOFOR Automatic thermocouple Pipe Cutting Machine steel Tube Bar
Cut Equipment enables to cut the steel pipe no burr, noburn
flatness,the accuracy can up to +_0.03mm;The efficiency is very
high,5-10 pcs cut together.
| Model Item | High-end Version | Standard Version |
| USB001 | AF017 | USB001 | AF017 |
| Shape size (length * width * height)Without foot cup(mm) | 1155*940*1680 | 720*1050*920 | 1155*940*1680 | 845*1150*1150 |
| Main machine weight(KG) | 750 | 380 | 550 | 380 |
| Machine power(KW) | About 12.8 | About 5.5 | About 2.8 | About 1.9 |
| Main drive power(KW) | 11 | 3 | 1.5 | 0.55 |
| Maximum grinding wheel(mm) | 205 | 230 | 205 | 230 |
| Center hole(mm) | 32 | 32 | 25.4 | 25.4 |
| Rotating speed(r/min) | 0-4000 | 3500 | 0-4000 | 3500 |
| Maximum cutting capacity(mm) | ∮145 | ∮90 | ∮58 | ∮45 |
| Maximum cutting range(mm) | 140 | 90 | 150 | 130 |
| cutting speed | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Servo feeding | Stepping feeding | Servo feeding | Servo feeding |
| Push and cut mode | Z-cut | Z-cutg | Z-cut | Z-cut |
Stainless steel capillaries have good flexibility, corrosion
resistance, high temperature resistance, abrasion resistance,
tensile strength, water resistance and excellent electromagnetic
shielding properties. Capillary as a raw material is widely used in
chemical, petroleum, electronics, jewelry, medical, aerospace, air
conditioning, medical equipment, kitchen appliances,
pharmaceuticals, water supply equipment, food machinery, power
generation, boilers and other fields.
With the needs of the current social development, the requirements
for stainless steel capillary processing are getting higher and
higher, so it is an inevitable condition to continuously improve
the cutting process of stainless steel capillary tubes!
Stainless steel capillary is a very fine material. The general
specification is between 0.2mm and -3mm in outer diameter, and the
wall is very thin.
Therefore, the cutting process must use precision cutting
equipment.
AUTOFOR stainless steel capillary cutting equipment is a
high-precision stainless steel capillary cutting machine.
Features:
1. can automatically feed, greatly saving labor costs.
2. can be bundled together to cut, greatly improving work
efficiency.
3. processing cutting precision is high, the precision can be
controlled at ±0.03mm.
4. the overall structure is reasonable and compact, good design
layout, making the operation of personnel more simple and fast.
The stainless steel capillary cutting piece developed by AUTOFOR
for the market has been well received in the industry, and it
solves the problems of heavy burr cutting, cutting burn and slow
cutting efficiency for many users. Equipped with Altof's AUTOFOR
precision cutting equipment, the cut port is smooth, flat,
burr-free, and free of burns! AUTOFOR truly enhances the cutting
process for customers!
